GLASS SHAFT ELEVATOR

The introduction of the elevator is a great step forward in society, contributing greatly to human mobility. For some professions, it is also a means of transporting bulky goods and supporting people's health. old people, young children, etc. Therefore, elevator companies today are constantly researching and launching many different elevator models, to serve a variety of uses as well as the aesthetics of the elevator. machines, one of which is "Glass Shaft Elevator", a type of elevator that is easily found in today's life and society.

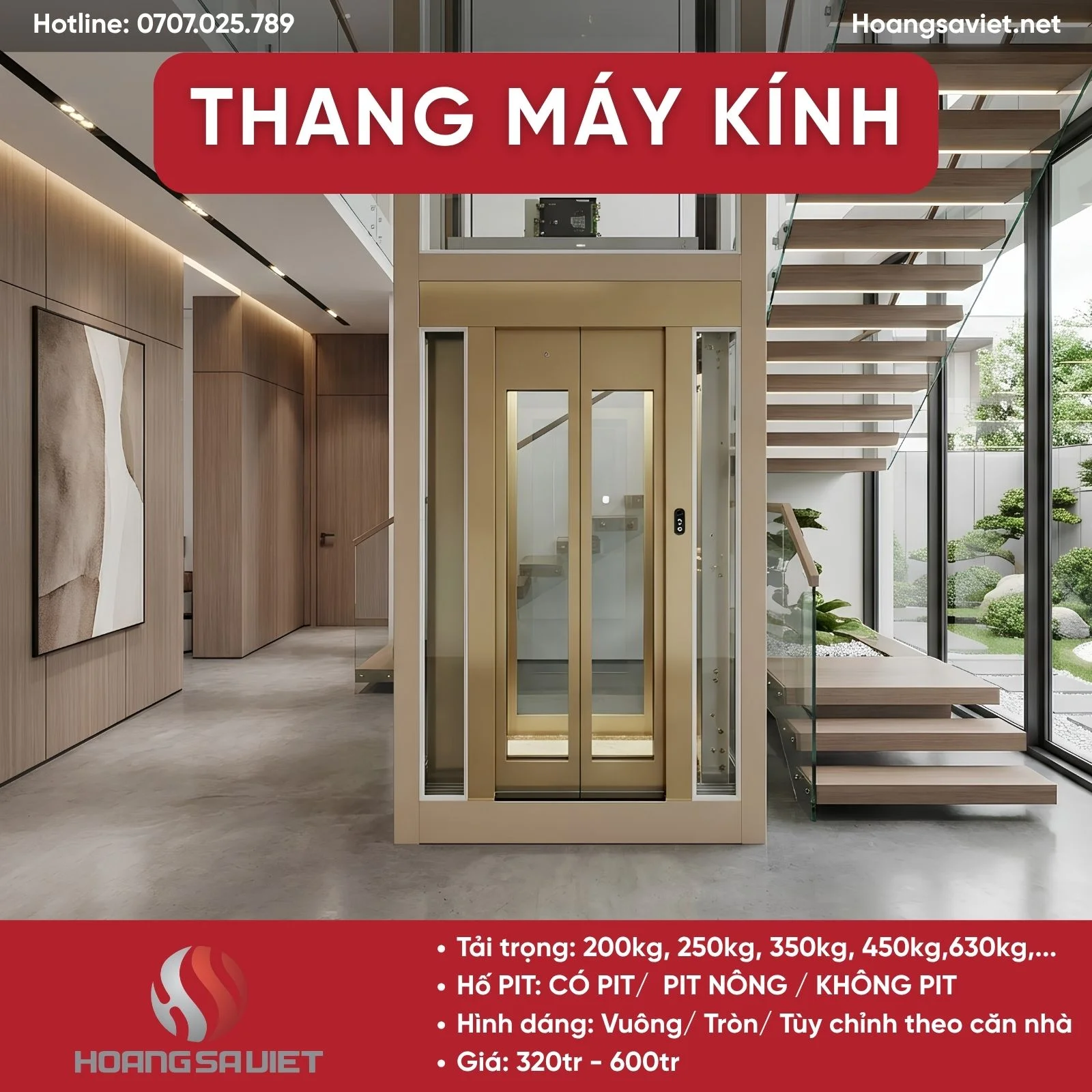

What is a Glass Shaft Elevator?

Glass elevators, also known as glass cage elevators, glass chamber elevators, are elevators made up of 4 surrounding glass surfaces. The type of glass used for glass elevators is usually tempered glass, tempered glass. curved shape and depending on the purpose of use, we can choose the appropriate type of glass for the elevator.

Popular Sizes of Home Glass Elevators

To better understand the types of sizes and make it convenient for customers to choose elevators, Hoang Sa Viet would like to list the common sizes today according to elevator "Load capacity" .

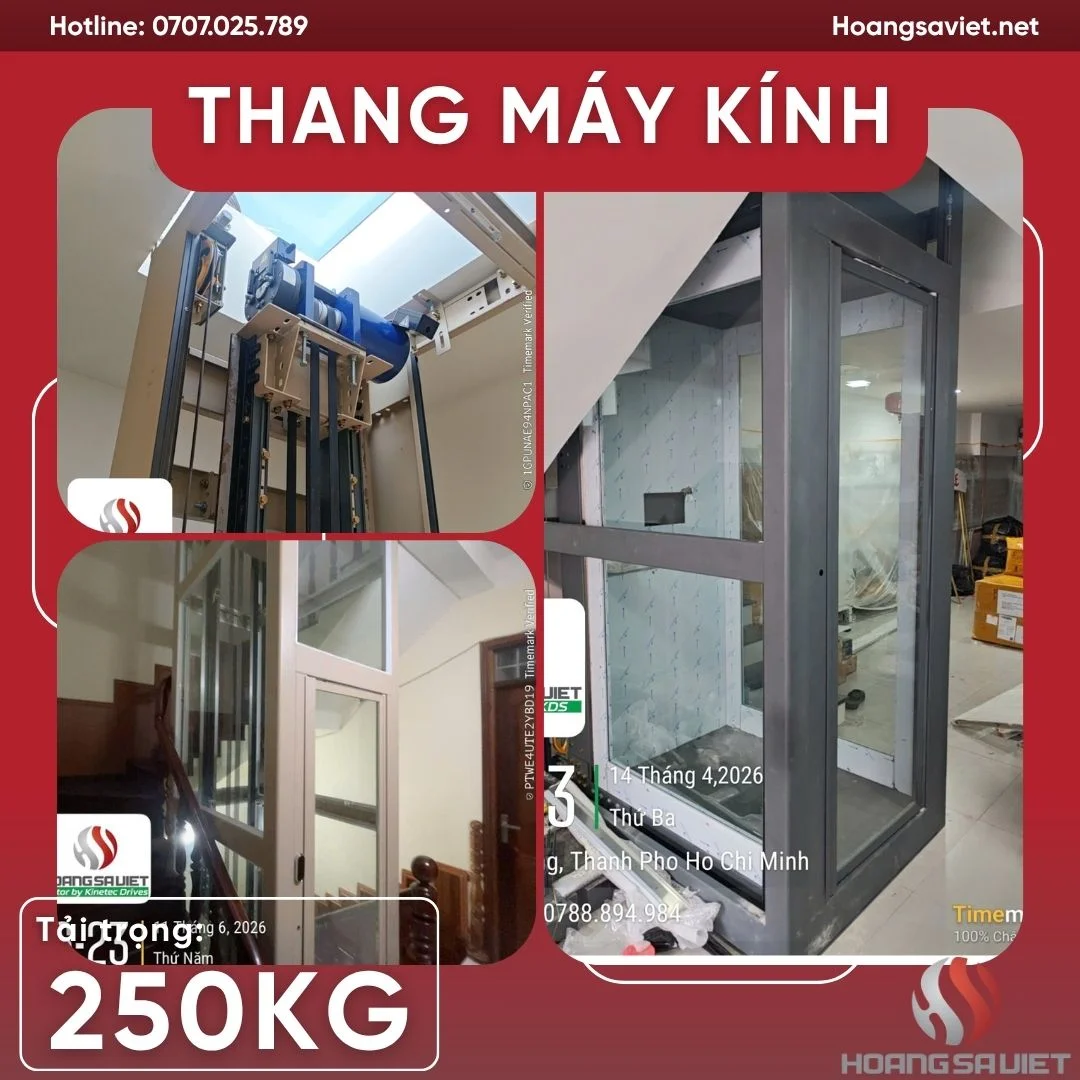

1. 250KG Family Glass Elevator Scale:

The 250KG load elevator is very suitable for families with an area of ​​40m2 - 50m2. Depending on the land size, you can install a counterweight system behind or on the side of the cabin.
* Pit 250mm: Pit size: (W x L) 1250mm x 1400mm
* Pit 500mm: Pit size: (W x L) 1250mm x 1300mm
OH: 3000mm (Min)
- Cabin Size: (W x L) long) 1000mm x 800mm
- Door Size: 700mm

2. 300KG Glass Elevator Scale:

This is the most used load type for imported elevators and joint venture elevators . This load is very suitable for families with 3 - 6 people, house area 50m2 - 60m2.
* 250mm Pit Pit: Ladder Pit Dimensions: (W x L) 1250mm x 1550mm
* 500mm Pit Pit: Ladder Pit Dimensions: (W x L) 1250mm x 1450mm
OH: 3000mm (Min)
- Cabin Size: (W x L) long) 1000mm x 950mm
- Door Size: 700mm
See more: What is a joint venture glass elevator? Installation price list

3. 400KG Glass Chamber Elevator Scale:

Load capacity of 400KG is suitable for mini apartments, mini hotels, motels or households with many members.
* Pit 250mm: Pit size: (W x L) 1400mm x 1600mm
* Pit 500mm: Pit size: (W x L) 1400mm x 1500mm
OH: 3000mm (Min)
- Cabin Size: (W x L) long) 1000mm x 950mm
- Door Size: 800mm

Refer to Glass Elevator Technical Standards Table

Advantages and Benefits of Installing Glass Elevators

- Creates a spacious and airy feeling for the space.
- Enhance aesthetics and elegance.
- Easily coordinates with surrounding landscape and decoration.
- People inside the elevator can easily observe the surroundings and the movement of the elevator when going up and down.
- Easy to clean, cleaning does not take much effort.

A few notes when using glass elevators

- Price and installation costs are higher than conventional elevators.
- Not suitable for people with fear of heights.
- During use, avoid strong impacts
- Need to focus on glass quality and choose a reputable and quality elevator installation unit.
